PTFE 8000 Corroline+ flexible smooth-bore chemical hose
Most of our Kaptech flexible hose assemblies can be supplied complete with easy to use quick-release couplings: see our Hansen couplings range for details.

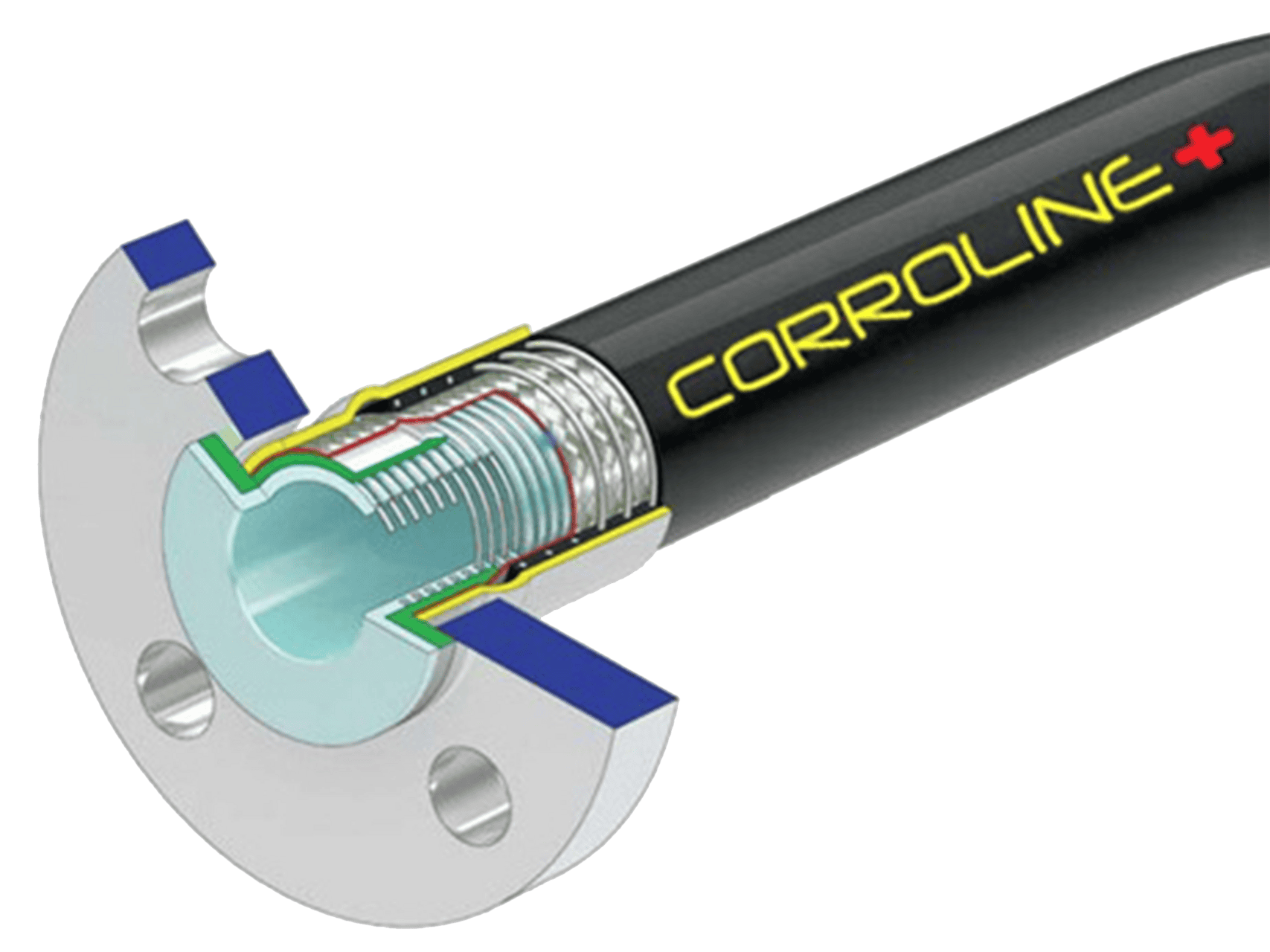

Kaptech Corroline+ flexible PTFE hose offers a unique solution to the need for a smooth bore hose with the flexibility of a convoluted hose.
Downloads
Details
Stainless steel wire braid
Black EPDM rubber cover antistatic and fireproof
- Smooth bore yet highly flexible hose - a unique combination
- Excellent chemical resistance - inert to all but a handful of uncommon chemicals
- Self-cleaning - product does not adhere to the tube wall
- Low flow-resistance - flow rates are more than twice those of conventional convoluted hose
- Durable - stainless steel braid with abrasion resistant, black anti-static smooth finish EPDM rubber cover
- Heat resistant - usable from -40°C up to 150°C, dependent on application/specification
- Vacuum resistant - usable to -0.9 Bar for all sizes
- Sizes - 1/2" up to 3" nb
- Wide range of end fittings - Triclamp, SMS, BSP, NPT, JIC, flanges, camlock etc
- For specific applications and working conditions, please consult Guyson Technical Sales Department.
| Hose Type | PTFE Hose |
|---|---|
| Bore Size (inches) | 1/2″ up to 3″ nb |
